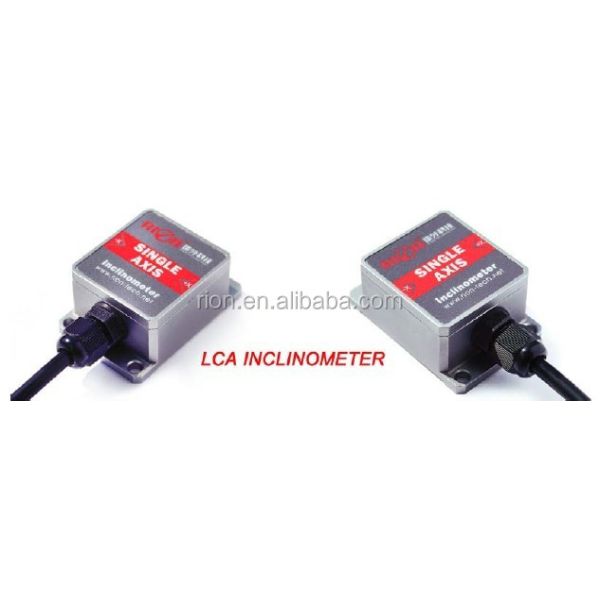

LCA310T 360deg Single Axis Tilt Sensor Wide Voltage Input 9～36V Inclinometer

Model Number : LCA310T-V1

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : cartons

Supply Ability : 30000 Piece/Pieces per Month

Price : $60.00/Pieces >=1 Pieces

Certification : CE

MOQ : 1

Payment Terms : T/T

Delivery Time : 7 days

Usage : Level Sensor

Anti-vibration : Capacitance Sensor

Output : 10grms、10～1000Hz

Standard accuracy : 0.1°

Protection grade : IP67

Response frequency : 20Hz

Contact Now

LCA310T 360deg Single Axis Tilt Sensor Wide voltage input 9～36V inclinometer

General Description

The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !

Specification

LCA310T&LCA320T CONDITION PARAMETER UNIT
Measure range ±30 ±60 ±90 0~360 °
Measure axis X Y X Y X Y X Y Axis
Zero output 0° output 2.5 2.5 2.5 2.5 V
Resolution 0.02 0.03 0.05 0.08 °
Measure accuracy @25℃ 0.1 0.1 0.15 0.2 °
Long term. stability <0.5 <0.5 <0.5 <0.5 °
Zero Temp.coefficient -40～85℃ ±0.02 ±0.02 ±0.02 ±0.02 °/℃
Sensitivity temp-coeffi -40～85℃ ≤150 ≤150 ≤150 ≤150 ppm/℃
Power-on start time 0.5 0.5 0.5 0.5 S
Response time 0.02 0.02 0.02 0.02 s
Response frequency 1～20 1～20 1～20 1～20 Hz
EMC According to EN61000 and GBT17626
MTBF ≥45000 hours/times
Insulation Resistance ≥100 MΩ
Impact resistance 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2
Weight 90g (exclude cable)

Features

  • Single-Axis Inclinometer
  • Full measuring range anyone within 360° optional
  • Accuacy: refer to the technical data
  • Wide voltage input: 9~36V
  • Output interface :0~5V
  • Wide temperature working: -40~+85℃
  • IP67 protection class
  • Highly anti-vibration perfermance >3500g
  • Resolution: 0.05°

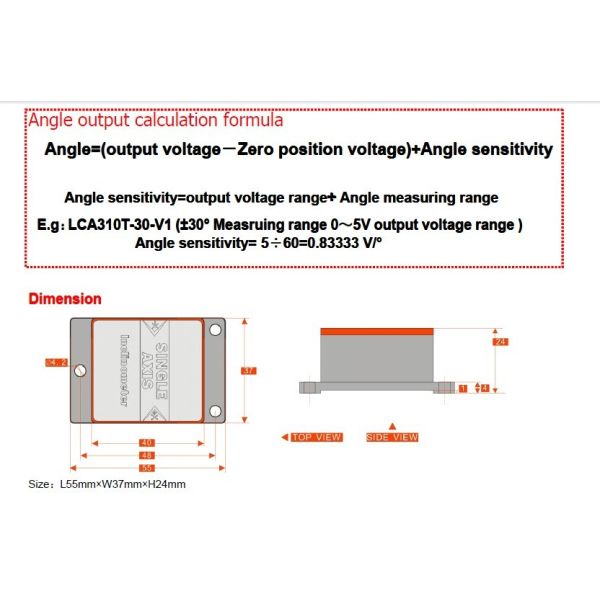

  • Small Volume : 55×37×24mm(customized)

Application:

  • Electric blind man chair leveling
  • Cloud deck operating monitor
  • Satelite antenna positioning
  • Medical equipment leveling
  • Car Chassis Measurement
  • Four - wheeled positioning system
  • engineering mechanical measurement of dip angle
